Stavros Kalapothas

In recent years, the advancements in specialized hardware architectures have supported the industry and the research community to address the computation power needed for more enhanced and compute intensive artificial intelligence (AI) algorithms and applications that have already reached a substantial growth, such as in natural language processing (NLP) and computer vision (CV). The developments of open-source hardware (OSH) and the contribution towards the creation of hardware-based accelerators with implication mainly in machine learning (ML), has also been significant. In particular, the reduced instruction-set computer-five (RISC-V) open standard architecture has been widely adopted by a community of researchers and commercial users, worldwide, in numerous openly available implementations. The selection through a plethora of RISC-V processor cores and the mix of architectures and configurations combined with the proliferation of ML software frameworks for ML workloads, is not trivial. In order to facilitate this process, this paper presents a survey focused on the assessment of the ecosystem that entails RISC-V based hardware for creating a classification of system-on-chip (SoC) and CPU cores, along with an inclusive arrangement of the latest released frameworks that have supported open hardware integration for ML applications. Moreover, part of this work is devoted to the challenges that are concerned, such as power efficiency and reliability, when designing and building application with OSH in the AI/ML domain. This study presents a quantitative taxonomy of RISC-V SoC and reveals the opportunities in future research in machine learning with RISC-V open-source hardware architectures.

Field Programmable Gate Array (FPGA) accelerators have been widely adopted for artificial intelligence (AI) applications on edge devices (Edge-AI) utilizing Deep Neural Networks (DNN) architectures. FPGAs have gained their reputation due to the greater energy efficiency and high parallelism than microcontrollers (MCU) and graphical processing units (GPU), while they are easier to develop and more reconfigurable than the Application Specific Integrated Circuit (ASIC). The development and building of AI applications on resource constraint devices such as FPGAs remains a challenge, however, due to the co-design approach, which requires a valuable expertise in low-level hardware design and in software development. This paper explores the efficacy and the dynamic deployment of hardware accelerated applications on the Kria KV260 development platform based on the Xilinx Kria K26 system-on-module (SoM), which includes a Zynq multiprocessor system-on-chip (MPSoC). The platform supports the Python-based PYNQ framework and maintains a high level of versatility with the support of custom bitstreams (overlays). The demonstration proved the reconfigurabibilty and the overall ease of implementation with low-footprint machine learning (ML) algorithms.

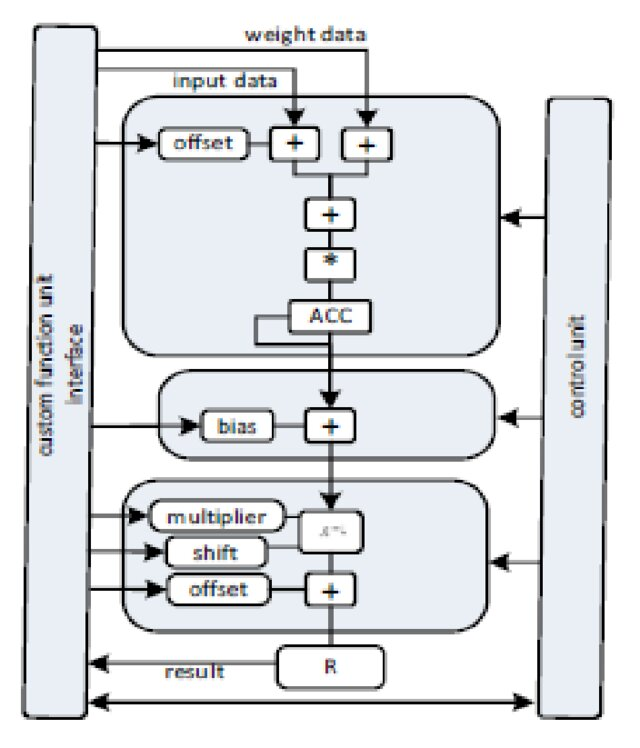

In recent years, the use of Machine Learning (ML) algorithms on edge devices for common applications such as computer vision, speech recognition etc. is increasing rapidly. With the evolution and the complexity of the latest ML models, inference has become more computationally expensive and therefore, deployment to resource-constraint edge devices is a challenging task. A common technique to address that challenge and increase performance and efficiency, is to offload compute intensive functions from software and run them onto dedicated hardware instead. In this paper we present the complete flow of software-hardware co-design for a lightweight object detection ML model, first time implemented on a RISC-V soft processor. Then we describe software optimizations for the model and a compact hardware accelerator design. We deploy and profile, in terms of cycle count, resource utilization and power consumption of our design on a Xilinx Artix7 35T low-end Field Programmable Gate Array (FPGA) device. Our RISC-V based compact accelerator achieves almost 3.7x inference speedup @ 180 mW power consumption and consumes 5.5K slice LUTs (26.41%) – 4.3K slice registers (10.19%). Therefore, our implementation facilitates object detection for a variety of non-speed demanding embedded applications, at competent speed on small– entry-level FPGA devices.
